Magnesium fluoride (MgF2) crystal is a kind of birefringent crystal, high hardness, chemical corrosion resistance, good mechanical properties, wide light transmittance range (120nm-7500nm)

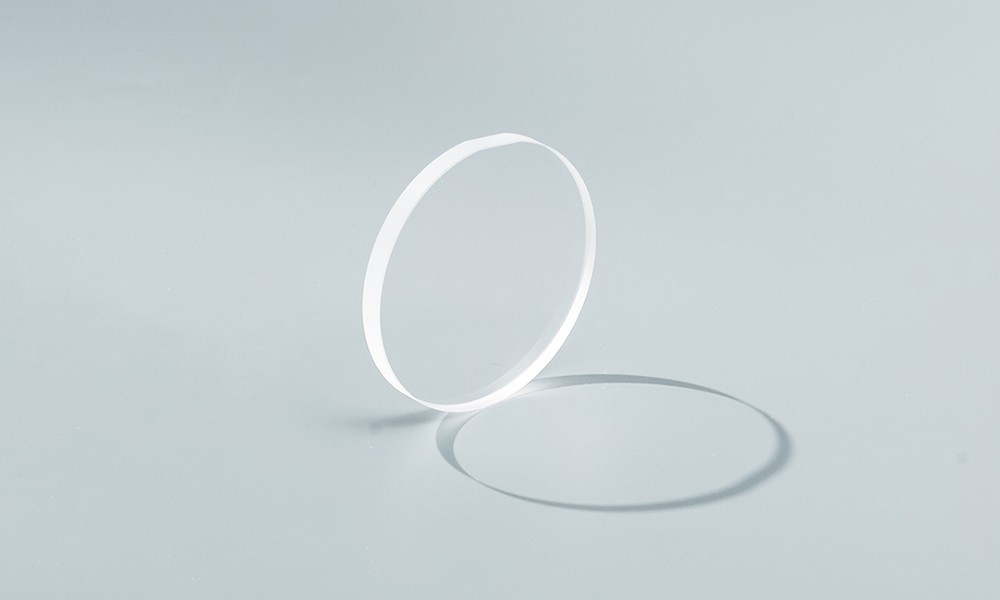

It does not change the magnification of the system. A protection window usually used in electronic sensors or external environments

A concave lens is composed of a plane and a concave sphere that can produce a negative spherical difference, which is often used in the system to expand the light beam or increase the focal length to balance the deviation of other lenses.

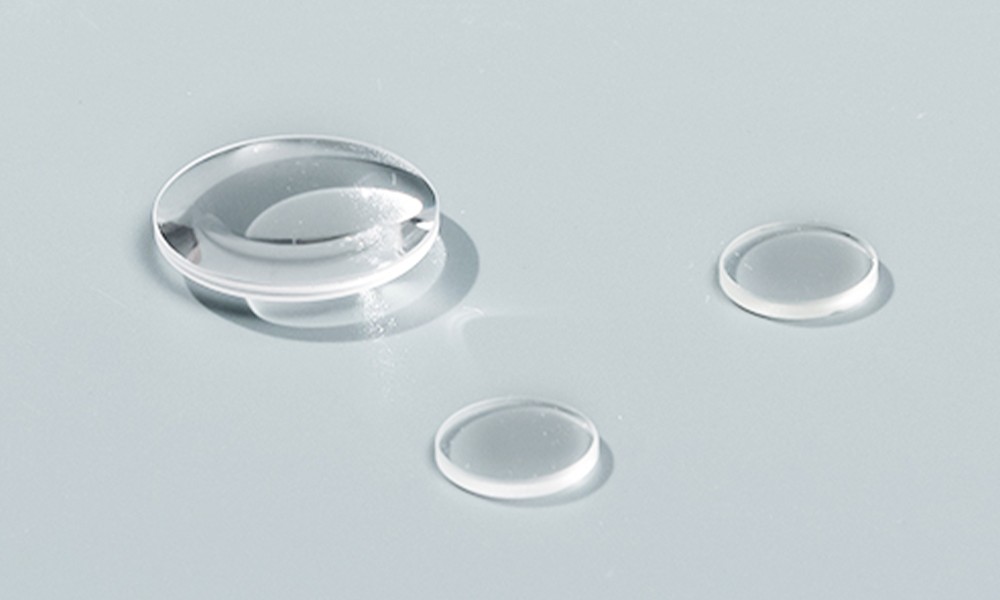

The main feature is that the focal length is positive, one side is a plane, and one side is a convex surface. In the optical system, the main role is beam expansion, imaging, beam collimation, focus alignment, etc.

The main features of the crescent lens are: one side is convex and one side is concave. It can be either a converging lens or a divergent lens; determined by the refractive index, curvature, and radius. Mainly used for projection system, imaging system

104.The double-convex lens features a positive focal length consisting of two convex surfaces with equal radii; commonly used for imaging relay systems and for imaging objects at a limited conjugate distance; the greater the conjugation ratio

105.Double-concave lens is composed of two concave surfaces with equal side radius of curvature, which is often used for lens beam expansion, projection, and expanding the focal length of the optical system.

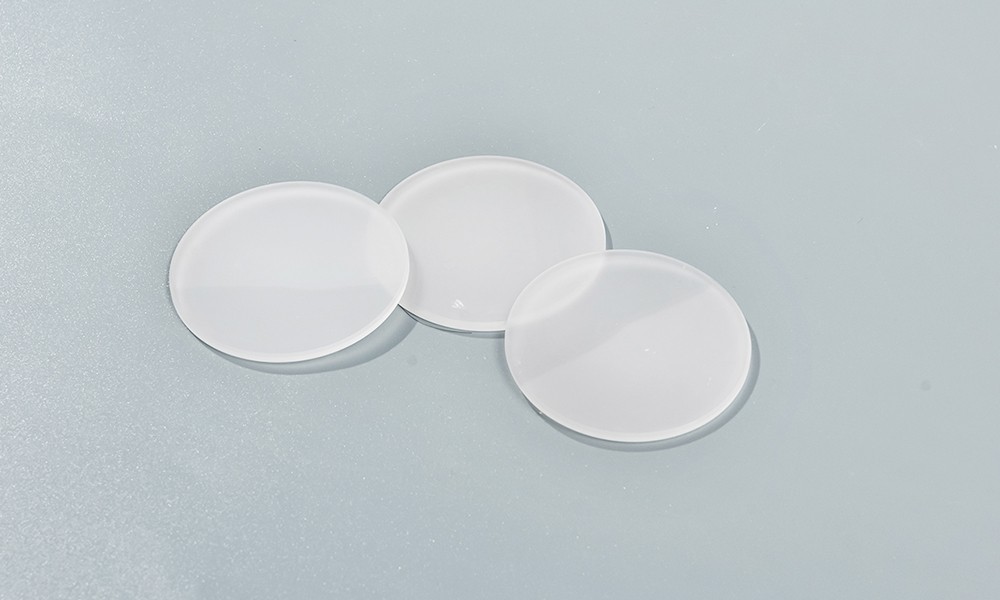

Two planes have angles; two non-parallel planes can avoid the interference effect (Etalon effect) reflected by the front and rear surfaces of the high parallelism window
